Drug Storage Locker

A higher level of security for controlled pharmaceuticals.

Authorized entry first requires the opening of a mechanical managers key lock. Once open, access is granted only after the correct digital code is entered into the electronic lock. With every entry, an audit stamp is recorded by the lock with user information, date and time of entry. Every transactions via the electronic lock will be recorded, enabling a digital trail that is irrefutable.

So when a secure storage unit that utilizes both a mechanical and electronic locking mechanism is desired, housed in a heavy-duty constructed cabinet, look no further than our Drug Lockers.

With the DL-100 and DL-200 Drug Lockers, you can be assured your customers prescriptions will remain safe and secure.

With an outer case made of heavy-duty 16-gauge steel, and 14-gauge doors resting on a full-length hinge with 3-point locking, the DL’s offer a formidable defense barrier against unauthorized access.

Two Configurations Available:

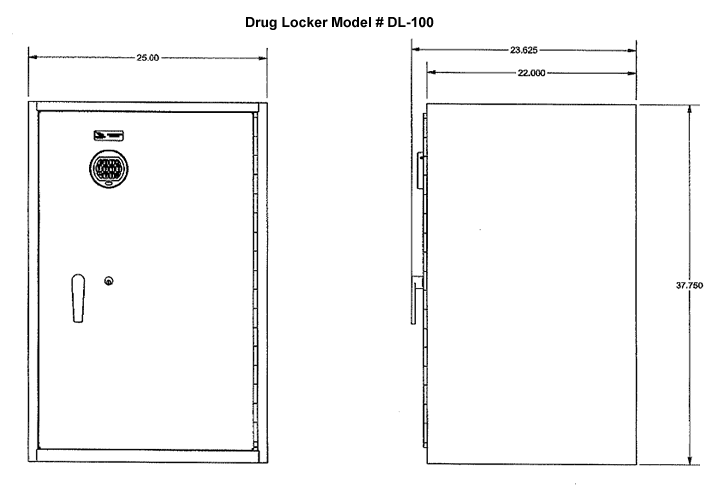

DL-100: 25”wide, single door, 3-pull out shelves; one file drawer. View drawing.

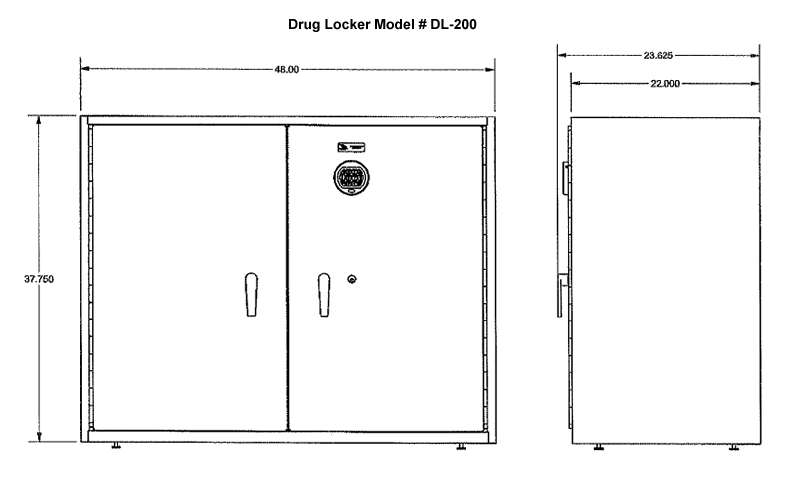

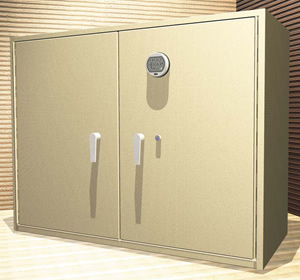

DL-200: 48”wide, double door, 7-pull out shelves including one for oversized storage, and one file drawer. View drawing.

A typical install showing pharmaceuticals organized and labeled.

Construction:

• Outer case made of heavy duty 16-gauge Cold Rolled Steel (CRS)

• Cabinet doors and D-Wall made of 14-gauge CRS (double wall construction) and mounted on full-length piano hinge for maximum door rigidity

• Heavy-duty 3-point locking system for enhanced security

• Seven (7) full extension pull out shelves made of 18-gauge CRS

• One (1) full extension legal size file drawer made of 18-gauge CRS

• Mig welded at stress points for enhanced rigidity

Shelves, Slides, and Cabinet

• Four (4) adjustable leg levelers (standard)

• Four (4) anchor points for floor bolting (optional)

• Four (4) 3/8” diameter top anchoring holes (for undercounter mounting)

• Adjustable dividers in 1/2” increments

• Full extension, progressive ball bearing drawers lides with a 150lb. rating

Door Lock:

• Lagard LP Audit lock with manager mode + 8 users

• Time delay ability (both delay and open)

• Audit trail of 512 event capable

• Managers mechanical key lock core changeable

These colors are reproductions and approximate the actual colors as closely as possible and are subject to change without notice.

• All orders are shipped F.O.B. factory, Ontario, California.

• All claims of defect or storage must be made within 5 days of the receipt of the merchandise.

• Freight and inside delivery required additonal quote.

Korden products carry a lifetime guarantee to the original purchaser under normal operating conditions. Damage as a result of improper installation, improper handling, modifications, or abuse are not covered by Korden. Korden's responsibility is to repair or replace the product at the Korden factory. Freight is to be prepaid by the customer. Replacement or repair will be solely at the discretion of Korden.
